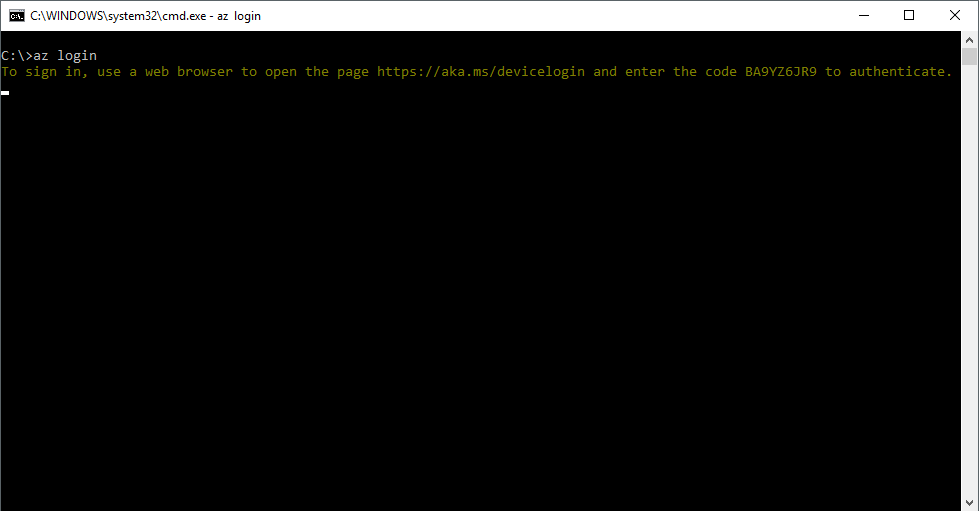

If you have used something like the cross-platform Azure CLI before, you may have seen this:

Azure CLI waiting for login

That is an example of the use of the OAuth Device flow in Azure AD, sometimes called device code flow. It is one of the OAuth authentication flows available in Azure AD, with the purpose of providing access tokens for applications to call Azure AD-protected APIs.

I thought this flow is particularly poorly documented, so I thought why not figure out how it works and share it with all of you?

What is device flow

It's an authentication flow that's part of the OAuth spec: IETF Draft for OAuth Device Flow. It allows authentication in apps which cannot display a web browser, even on devices with only a text output.

In this flow, the user is required to open a browser on whichever device they want, enter a code given by the app, and then authenticate with their user. The app then receives tokens as normal.

The really good thing about this is that if user consent for permissions is needed, or the user is a federated user from an on-prem AD, or the user's password has expired, our app does not need to care about any of that. Which is exactly how all the browser-based flows work as well.

The wrong answer to this problem would be to use ROPC discussed here, in which the user would need to give their password to the app. ROPC does not work in any of the example cases in the former paragraph, which makes it a poor choice (along with the password going through the app thing).

The flow - a helicopter view

  1. App makes HTTP POST to the device code endpoint
  2. Gets response with:
    • User code
    • Device code
    • Verification URL
    • Expiry time
    • Polling interval
    • Friendly message
  3. Shows message to user so they can open a browser and go to the verification URL
  4. App starts polling the token endpoint at the defined polling interval, waits for a 200 OK
  5. User opens browser, goes to verification URL, enters the user code
  6. User signs in with their account
  7. App receives 200 OK with:
    • Access token
    • Refresh token
    • Id token

ADAL

If you use ADAL.NET, you can do device code authentication very easily, as shown here: sample app in GitHub. No need to do it manually :D

Detailed walkthrough of the flow

As preparation I created a native app in my Azure AD tenant. The reply URLs do not matter in this case at all.

My test app is a simple console application written in C#, and I captured the HTTP requests using Fiddler.

First, it must call the device code endpoint:

string host = "login.microsoftonline.com";
string tenant = "your-tenant-id-here";
string resource = "https://graph.windows.net";
string clientId = "your-app-client-id-here";
string deviceCodeUri = string.Format(CultureInfo.InvariantCulture, "https://{0}/{1}/oauth2/devicecode", host, tenant);
using(var client = new HttpClient())
{
    var content = new FormUrlEncodedContent(new Dictionary<string, string>
    {
        ["resource"] = resource,
        ["client_id"] = clientId
    });

    var req = new HttpRequestMessage(HttpMethod.Post, deviceCodeUri);
    req.Content = content;
    var res = await client.SendAsync(req);

    string json = await res.Content.ReadAsStringAsync();

    var codeResponse = JsonConvert.DeserializeObject<DeviceCodeResponse>(json);
}

So we only need two parameters, the app's client id, and the resource. The resource is the identifier for the API we want to use. In the case of Azure AD Graph API, it is https://graph.windows.net.

Here is how the raw HTTP request looks like:

POST https://login.microsoftonline.com/52a7d760-d554-4751-bb71-cc3585633f2e/oauth2/devicecode HTTP/1.1
Content-Type: application/x-www-form-urlencoded
Host: login.microsoftonline.com
Content-Length: 89
Expect: 100-continue
Connection: Keep-Alive

resource=https%3A%2F%2Fgraph.windows.net&client_id=b0aebd14-7a8e-4114-ba5b-45874f5e9aa8

And here is the response:

{
    "user_code":"BXMAAAAA",
    "device_code":"BAQAB...",
    "verification_url":"https://aka.ms/devicelogin",
    "expires_in":"900",
    "interval":"5",
    "message":"To sign in, use a web browser to open the page https://aka.ms/devicelogin and enter the code BXMAAAAA to authenticate."
}

So what are those returned values?

  • User code: the code the user must input in their browser
  • Device code: used by the app to check authentication status
  • Verification URL: The URL the user should open in a browser
  • Expires in: Time in seconds until the device code and user code expire
  • Interval: Polling interval in seconds your app should use
  • Message: A friendly message that you can show to the user

So now we can show the message to the user:

To sign in, use a web browser to open the page https://aka.ms/devicelogin and enter the code BXMAAAAA to authenticate.

Now while the user is opening the browser on their computer or phone, the app will need to start polling. Here is how it looks like in my console app:

TimeSpan pollingInterval = TimeSpan.FromSeconds(int.Parse(codeResponse.Interval));
DateTimeOffset codeExpiresOn = DateTimeOffset.UtcNow.AddSeconds(int.Parse(codeResponse.ExpiresIn));
TimeSpan timeRemaining = codeExpiresOn - DateTimeOffset.UtcNow;

string tokenUri = string.Format(CultureInfo.InvariantCulture, "https://{0}/{1}/oauth2/token", host, tenant);

TokenResponse tokenResponse = null;

//Loop until codes expire
while(timeRemaining.TotalSeconds > 0)
{
    var tokenRequest = new HttpRequestMessage(HttpMethod.Post, tokenUri)
    {
        Content = new FormUrlEncodedContent(new Dictionary<string, string>
        {
            ["grant_type"] = "device_code",
            ["resource"] = resource,
            ["code"] = codeResponse.DeviceCode,
            ["client_id"] = clientId
        })
    };

    //Same HttpClient as before, this code is inside the same using block
    var tokenRes = await client.SendAsync(tokenRequest);

    string tokenJson = await tokenRes.Content.ReadAsStringAsync();
    var tempTokenResponse = JsonConvert.DeserializeObject<TokenResponse>(tokenJson);

    if(tokenRes.StatusCode == HttpStatusCode.OK)
    {
        //We got a successful response
        tokenResponse = tempTokenResponse;
        break;
    }

    //The authorization_pending error is completely normal until user authenticates
    if(tempTokenResponse.Error != null && tempTokenResponse.Error != "authorization_pending")
    {
        //Something went wrong
        throw new Exception("Token acquisition failed: " + tempTokenResponse.Error);
    }

    await Task.Delay(pollingInterval);
    timeRemaining = codeExpiresOn - DateTimeOffset.UtcNow;
}

We specify the grant type device_code, tell it the resource we want to use (identifier for the API), and pass the app's client id and the device code received earlier.

We then poll the token endpoint until we either receive a 200 OK, or receive an error other than "authorization_pending", which is completely normal until the user logs in.

Here is what a raw polling request looks like:

POST https://login.microsoftonline.com/52a7d760-d554-4751-bb71-cc3585633f2e/oauth2/token HTTP/1.1
Content-Type: application/x-www-form-urlencoded
Host: login.microsoftonline.com
Content-Length: 303
Expect: 100-continue

grant_type=device_code&resource=https%3A%2F%2Fgraph.windows.net&code=BAQAB&client_id=b0aebd14-7a8e-4114-ba5b-45874f5e9aa8

Until the user authenticates, the response will have a 400 Bad Request status code, along with a response like this:

{
    "error":"authorization_pending",
    "error_description":"AADSTS70016: Pending end-user authorization.\r\nTrace ID: 81673608-fabb-4f69-8aa3-96bc32830c00\r\nCorrelation ID: 11a0f545-abb1-417d-b2eb-1243e8797b01\r\nTimestamp: 2018-02-27 19:05:03Z",
    "error_codes":[70016],
    "timestamp":"2018-02-27 19:05:03Z",
    "trace_id":"81673608-fabb-4f69-8aa3-96bc32830c00",
    "correlation_id":"11a0f545-abb1-417d-b2eb-1243e8797b01"
}

After the user authenticates, we get a 200 OK with a body like this:

{
    "token_type":"Bearer",
    "scope":"User.Read",
    "expires_in":"3599",
    "ext_expires_in":"0",
    "expires_on":"1519761916",
    "not_before":"1519758016",
    "resource":"https://graph.windows.net",
    "access_token":"eyJ0eXA...",
    "refresh_token":"AQABAAAAwjnFIAA...",
    "id_token":"eyJ0eXAiOiJKV1Qi..."
}

And now we can go ahead and call the API we wanted using the access token.

What about if I want to call another API? Well, we can use the refresh token to get access tokens for other APIs. As well as allowing you to get a new access token (and refresh token) for the first API, you can also get access tokens for other APIs your app has access to.

The Id token gives you information on the user.

Summary and links

With the device flow, even apps which do not run in a browser and cannot open a browser, can authenticate users in a good way.

ADAL (Azure AD Authentication Library) for .NET supports device flow, so there you do not need to do this manually. I did it because I wanted to learn how the flow works under the hood. At the time of writing, the Java version of ADAL did not support this flow, so knowing how to do it manually could be a useful thing.
